用途：
用于SMT生產線的源頭，將成疊的PCB裸板逐一傳送到生產線上。
Aoolication：
At the start end of a SMT line,the unstacker loads bare
PCBs on to the line piece by piece from stacked bare PCBs.

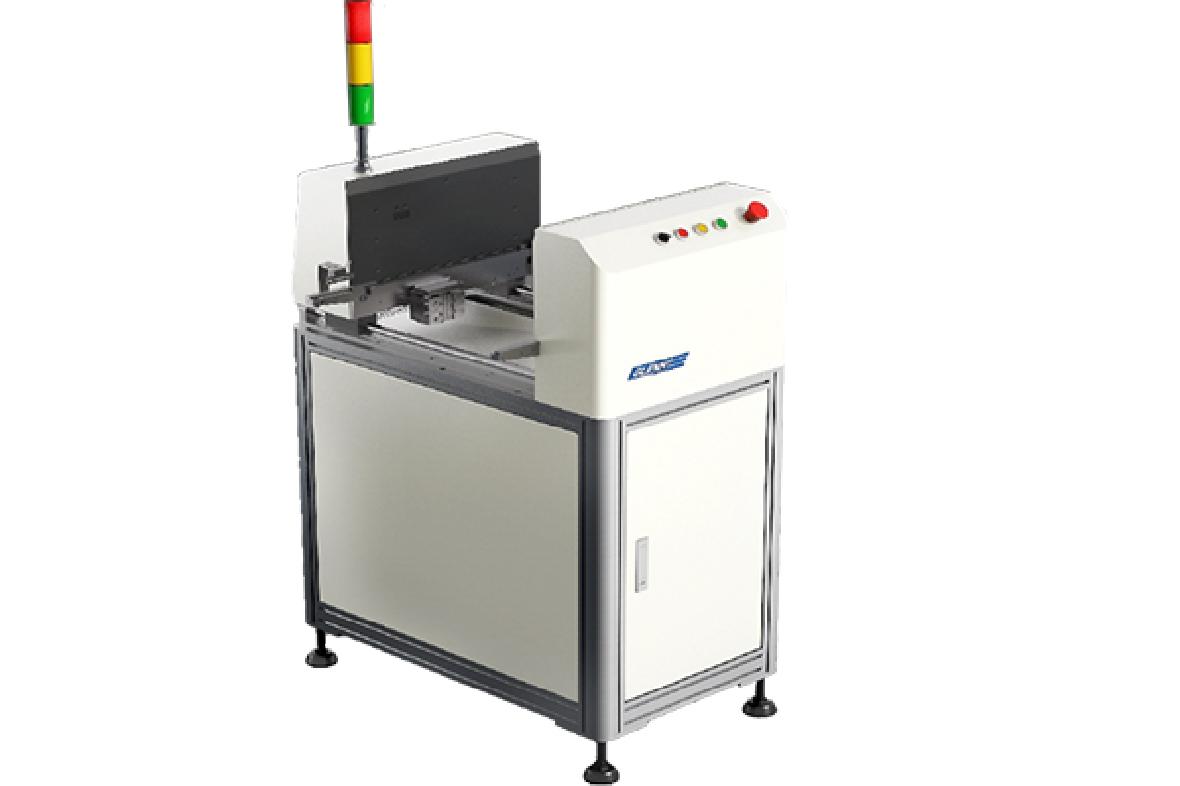

500跌板送板機
特點： Feature：
a)通用較重 較厚及帶插件孔的PCB a）a)Suitable for heavier, thicker PCBs and the ones with insert holes
b)可根據不同板寬，板厚自由調節(jié) b）b)Thickness and width adjustable according to different sizes of PCBs
c)周期短，效率高
c)High efficiency and short cycle
d）具有直通功能
d)Pass through function
e)可在不停機的狀態(tài)下加料
e)Uninterrupted supply of PCBs on the unit while running
f)無需真空吸盤
f)Non-vacuum pad design
| Model | 型號 | GBU-500 |
| Overall Dimension | 機臺尺寸 | （L）650*（W）835*（H）1160mm |
| Track width | 傳送寬度 | Min50-Max500mm |
| PCB Size(L*W) | PCB尺寸(L*W) | Min50*50-Max580*500mm |
| Conveyor Height | 傳輸高度 | 920±30mm |
| Board thickness | PCB厚度 | 0.6-3mm |
| Weight of PCB | 貯板重量 | 20KG |
| ` | 貯板高度 | Max200 |
| Cycle | 循環(huán)周期 | 8S |
| Power supply | 電源 | AC220 50/60HZ |
| Air supply | 氣源 | 0.4-0.6MPa |
| Power Consumption | 功率 | 0.2KW |
